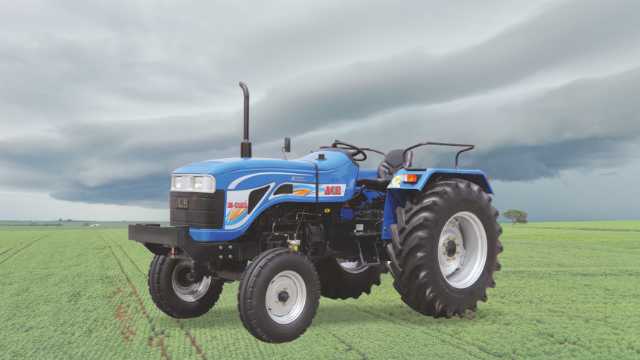

The ACE DI 6500 4WD Tractor is a formidable and advanced machine from Action Construction Equipment (ACE) Limited, designed for high-performance agricultural and commercial applications. This 61 HP 4-wheel drive tractor is built to handle the most demanding tasks with ease, offering superior power, traction, and efficiency on varied terrains.

It's recognized for its powerful engine, high lifting capacity, and sophisticated transmission system, making it a top choice for activities such as heavy plowing, deep tillage, operating large and power-hungry implements (like laser levelers and multi-crop planters), and high-volume commercial haulage. The 4WD capability is a significant advantage, providing exceptional grip and control, even in challenging field conditions like wet or muddy soil.

Key Features:

• High-Performance Engine: Powered by a robust 61 HP (45 kW), 4-cylinder, direct injection, water-cooled engine with a substantial 4088 cc displacement. This engine is engineered to deliver high torque (around 255 Nm at 2200 RPM), ensuring strong pulling power and consistent performance under heavy loads. It features a dry-type air cleaner with a clogging sensor for better engine protection.

• Advanced Synchromesh Transmission with Dual Clutch: Features a sophisticated Synchromesh gearbox with 12 forward and 12 reverse gears and a Synchro Shuttle. This wide range of gears provides excellent flexibility for precise speed selection across various field operations and road transport. The Dual Clutch system allows for independent PTO operation, enhancing efficiency.

• Exceptional Hydraulic Lifting Capacity: Boasts a very strong hydraulic lifting capacity of 2200 kg, equipped with High Precision ADDC (Automatic Depth & Draft Control) hydraulics. This enables it to effortlessly manage and operate a wide array of heavy and modern agricultural implements.

• Superior 4WD Traction and Stability: The 4-wheel drive system is standard, providing significantly enhanced traction and grip, particularly beneficial in slippery, muddy, or undulating terrains. This reduces wheel slippage, improves fuel efficiency in tough conditions, and enhances overall productivity.

• Optimal Tyre Configuration: Typically fitted with 9.50 x 24 front tyres and 16.9 x 28 rear tyres, providing excellent grip, stability, and load-bearing capacity for demanding operations.

• Operator Comfort and Safety: Comes with smooth Power Steering for effortless and precise control, crucial for heavy implements and long working hours. It is equipped with Oil-Immersed Multi-Disc Brakes for superior stopping power, enhanced safety, and longer life, even under heavy loads and at higher speeds. The ergonomically designed platform and clear controls contribute to reduced operator fatigue.

• High PTO Power: Offers a powerful PTO HP of 52 HP with a standard 6-spline setup and 540 RPM / 540E RPM, often with a Reverse PTO option. This makes it highly efficient for powering a wide range of heavy PTO-driven implements like rotavators, threshers, balers, and sprayers.

• Large Fuel Tank Capacity: Features a generous fuel tank capacity of 65 liters, enabling extended periods of operation without frequent refueling, which is crucial for large farms and long working days.

• Robust Build and Durability: Built with a heavy-duty chassis and robust components, ensuring exceptional longevity and reliability in challenging farm and commercial environments.

• Dimensions: The tractor has a wheelbase of 2235 mm, an overall length of 3990 mm, an overall width of 1940 mm, and a ground clearance of 380 mm, contributing to its stability and maneuverability.

• Warranty: ACE typically provides a 2-year or 2000-hour warranty on this model.

Why Choose the ACE DI 6500 4WD?

The ACE DI 6500 4WD is an excellent choice for farmers and contractors who prioritize maximum power, exceptional traction, and high efficiency in their operations. Its 61 HP engine combined with the 4WD system ensures unmatched pulling power and superior grip, making it highly effective for the most challenging tasks, including heavy tillage, land leveling, and large-scale haulage.

The tractor's impressive hydraulic lifting capacity and advanced 12F+12R Synchromesh transmission enhance its versatility, allowing it to work seamlessly with a broad array of modern and heavy farm implements, thereby significantly boosting productivity. The focus on operator comfort and safety, with features like power steering and oil-immersed multi-disc brakes, ensures that the tractor can be operated efficiently and safely for extended periods with reduced fatigue.

FAQ

Q1: What is the engine horsepower (HP) of the ACE DI 6500 4WD Tractor?

 A: The ACE DI 6500 4WD Tractor is rated at 61 HP.

Q2: What is the hydraulic lifting capacity of the ACE DI 6500 4WD Tractor?

 A: It has a high hydraulic lifting capacity of 2200 kg.

Q3: What type of transmission does the ACE DI 6500 4WD Tractor feature?

A: It features a Synchromesh transmission with a Dual Clutch and a Synchro Shuttle.

Q4: How many forward and reverse gears does the ACE DI 6500 4WD Tractor have?

A: It comes with 12 forward and 12 reverse gears.

Q5: What is the PTO horsepower (HP) of the ACE DI 6500 4WD Tractor?

A: The PTO HP is 52 HP.

Q6: What is the warranty period for the ACE DI 6500 4WD Tractor?

A: ACE typically offers a 2-year or 2000-hour warranty on this model.

Q7: Does the ACE DI 6500 4WD Tractor come with power steering?

A: Yes, it is equipped with Power Steering.
