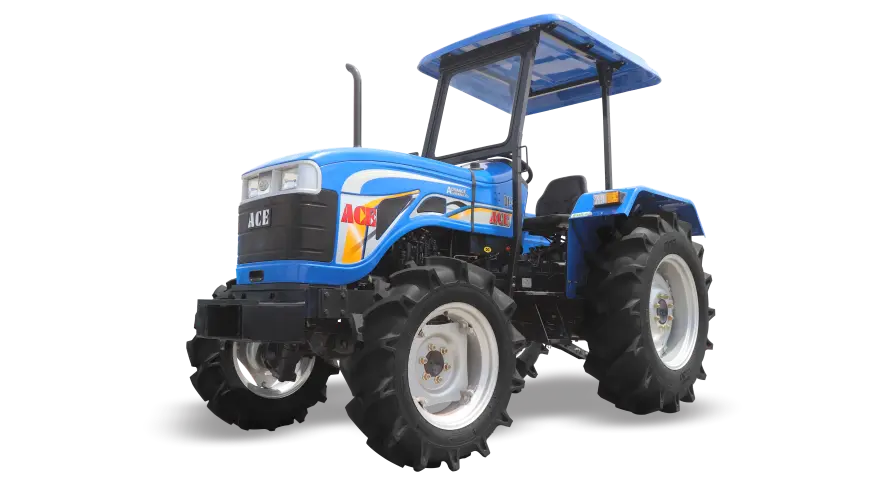

The ACE DI 550 NG 4WD Tractor is a formidable and high-performance offering from Action Construction Equipment (ACE) Limited, an established Indian manufacturer. This tractor is positioned in the 50 HP category and is specifically designed for demanding agricultural operations and heavy-duty commercial applications, especially where superior traction and power are crucial. The 4-wheel drive (4WD) capability sets it apart, making it highly effective on challenging terrains, wet fields, and for implements requiring strong pulling power.

Recognized for its robust engine, significant lifting capacity, and enhanced traction, the ACE DI 550 NG 4WD is a versatile and reliable choice for tasks like deep plowing, heavy tillage, extensive haulage, and operating large PTO-driven implements.

Key Features:

• Powerful & High-Capacity Engine: It is driven by a 50 HP (36.75 kW to 37.2 kW) 3-cylinder, direct injection, water-cooled engine with a 3065 cc displacement. This engine is engineered to deliver robust power and generates a high maximum torque of 202 Nm at 2100 RPM, ensuring excellent pulling power for heavy loads and challenging field conditions.

• Dual Clutch with Constant Mesh Transmission: Features a Dual Clutch system for independent operation of the PTO, and a Constant Mesh gearbox with 8 forward and 2 reverse gears. This combination ensures smooth, effortless gear changes, optimal speed selection for various tasks, and enhanced durability. It offers a good forward speed range of 2.50 to 32.5 kmph.

• High Hydraulic Lifting Capacity: Boasts a substantial hydraulic lifting capacity of 1800 kg (some sources indicate 1200-1800 kg), complemented by ADDC (Automatic Depth & Draft Control) hydraulics. This powerful system enables it to effortlessly manage and operate heavy agricultural implements like rotavators, MB ploughs, laser levelers, and large trailers.

• Superior 4WD Traction: The 4-wheel drive system provides significantly enhanced traction and grip, particularly beneficial in slippery, muddy, or undulating terrains. This ensures reduced wheel slippage, better fuel efficiency in tough conditions, and improved overall productivity.

• Optimal Tyre Configuration: Typically fitted with 8.0 x 18 front tyres and 14.9 x 28 rear tyres (some variants may have 12 PR), providing excellent grip, stability, and load-bearing capacity for demanding operations.

• Operator Comfort and Safety: Comes with Power Steering (Single Drop Arm) for effortless and precise maneuvering, crucial for heavy implements and long working hours. It is equipped with Oil-Immersed Multi-Disc Brakes for superior stopping power, enhanced safety, and longer life, even under heavy loads. The ergonomically designed platform and clear LCD cluster panel contribute to reduced operator fatigue.

• Robust PTO Power: Offers a powerful PTO HP of 42.5 HP with a standard 6-spline setup and 540 RPM. This makes it highly efficient for powering a wide range of PTO-driven implements like threshers, gensets, and large sprayers.

• Large Fuel Tank Capacity: Features a generous fuel tank capacity of 57 liters, enabling extended periods of operation without frequent refueling, which is especially beneficial for large farms or commercial haulage.

• Durable and Low Maintenance: Built with a heavy-duty chassis and robust components, along with a dry air cleaner with a clogging sensor, ensuring durability and ease of maintenance.

• Warranty: ACE typically provides a 2-year or 2000-hour warranty on the DI 550 NG 4WD, providing peace of mind to the owner.

Why Choose the ACE DI 550 NG 4WD?

The ACE DI 550 NG 4WD is an excellent choice for farmers and commercial operators who require a powerful and highly capable tractor that can perform reliably in diverse and challenging conditions. Its 50 HP engine coupled with 4WD provides unmatched pulling power and superior traction, making it ideal for tough soil cultivation, heavy haulage, and operating power-intensive implements.

The tractor's high hydraulic lifting capacity and versatile transmission options further enhance its utility, allowing it to adapt to various agricultural and commercial applications. The focus on operator comfort and safety, with features like power steering and oil-immersed brakes, ensures that long working hours are less strenuous and more productive. Furthermore, the fuel-efficient engine and robust build quality contribute to lower operational and maintenance costs, making it a sound long-term investment.

FAQ

Q1: What is the engine horsepower (HP) of the ACE DI 550 NG 4WD Tractor?

A: The ACE DI 550 NG 4WD Tractor is rated at 50 HP.

Q2: What is the hydraulic lifting capacity of the ACE DI 550 NG 4WD Tractor?

A: It has a hydraulic lifting capacity of 1800 kg (or optionally 1200 kg).

Q3: What type of transmission does the ACE DI 550 NG 4WD Tractor feature?

A: It features a Constant Mesh gearbox with a Dual Clutch.

Q4: How many forward and reverse gears does the ACE DI 550 NG 4WD Tractor have?

A: It comes with 8 forward and 2 reverse gears.

Q5: What is the PTO horsepower (HP) of the ACE DI 550 NG 4WD Tractor?

A: The PTO HP is approximately 42.5 HP.

Q6: What is the warranty period for the ACE DI 550 NG 4WD Tractor?

A: ACE typically offers a 2-year or 2000-hour warranty on this model.

Q7: Does the ACE DI 550 NG 4WD Tractor come with power steering?

A: Yes, it is equipped with Power Steering.
