Key Features

Self Propelled Combine Harvester: Comes with heavy-duty engine for high power in fields. High productivity and low maintenance. Technical Specifications: 3 Forward and 1 reverse gear for efficiency. Better cutter bar width for high performance. Threshing Mechanism: Includes Thresher Drum for Wheat, Paddy, and Maize. Speed rpm of 540-1200 with mechanical variator. Main Dimensions: Working dimensions: 8370mm length, 4665mm width, 3850mm height. Total weight: 9120 Kg with trailer. Model SL – CH101 Samrat: Power: 101 HP Ashok Leyland engine with 6 cylinders. Single, heavy-duty dry clutch with 4 forward and 1 reverse gear. Cutter Bar Mechanism: Width: 4.3mm for Wheat, Paddy, and Others. No. of blades: 58 and no. of guards: 29.

About Manufacturer

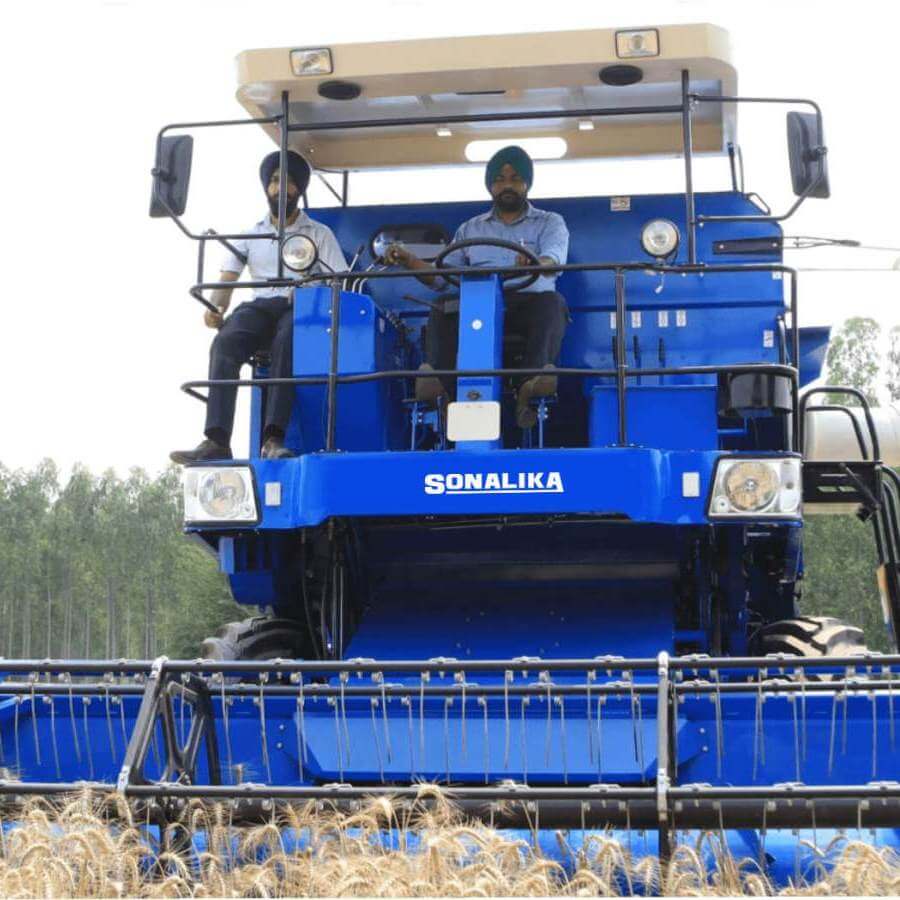

Self Propelled Combine Harvester comes with heavy-duty engine which provides high power in fields. This machine gives high productivity and lows on maintenance.

Model Overview

General Features Heavy-Duty Engine: Provides high power for field operations. High Productivity: Designed for efficient harvesting with low maintenance requirements. Gears: Equipped with 3 forward and 1 reverse gear for operational efficiency.

Specification

Technical Specifications Threshing Mechanism: Thresher Drum Width: 1250 mm for wheat, paddy, and maize. Speed: 540-1200 rpm, adjustable via mechanical variator. Straw Walker: Number: 5 straw walkers with 5 steps. Length: 3770 mm, width: 235 mm. Cleaning Sieves: Upper sieve area: 1.77 m². Capacity Grain Tank: 2.5 m³. Fuel Tank: 365 liters. Dimensions Working Dimensions: Length: 8370 mm, Width: 4665 mm, Height: 3850 mm. Transport Dimensions: Length: 12450 mm, Width: 3035 mm, Height: 3850 mm. Total Weight: Approx. 9120 Kg with trailer. Engine Specifications Model: SL – CH101 Samrat. Power: 101 HP Ashok Leyland engine with 6 cylinders. Cooling System: Water-cooled. Clutch and Transmission Clutch Type: Single, heavy-duty dry clutch (330 mm diameter). Gears: 4 forward and 1 reverse. Speed Range: Varies by gear, with forward speeds from 1.8 km/hr to 25.5 km/hr. Cutter Bar Mechanism Width: 4.3 mm for wheat and paddy. Blades: 58 blades and 29 guards. Cutting Height: Adjustable between 65 mm to 1275 mm.

Other Specification

Additional Features Tyres: Front Size: 18.4-30 (Ply Rating: 12pr/14pr). Rear Size: 9.00-16 (Ply Rating: 16pr). Reel Speed: 20-55, with a diameter of 915 mm.

Engine

Power: 101 HP Ashok Leyland engine with 6 cylinders.
