Mounted offset disc harrow
Wider working width than 12-disc model
Notched front discs for residue cutting
Plain rear discs for leveling
Strong angle frame construction
Uniform disc spacing
Easy tractor mounting

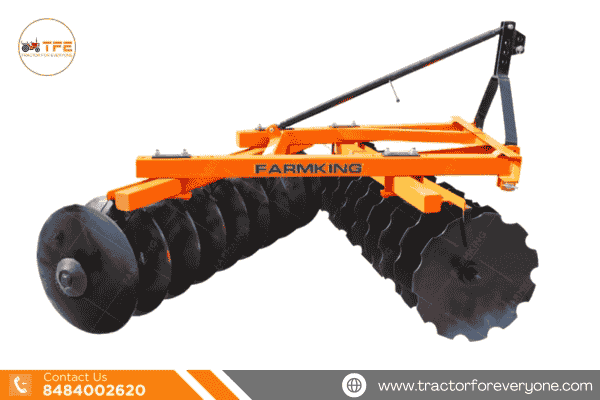

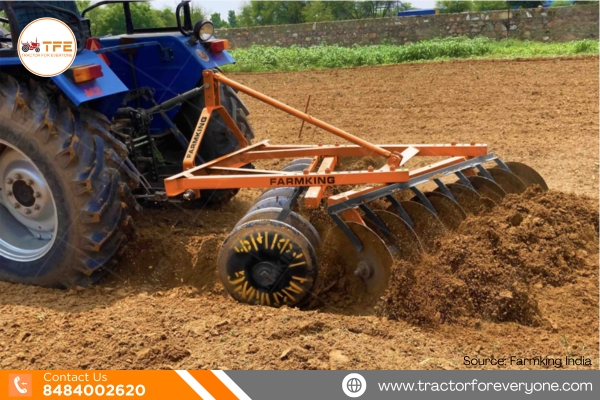

The Farmking FKDHUF-14D Mounted Disc Harrow is designed for medium-sized farms requiring wider coverage. It is used for seedbed preparation, residue cutting, and soil clod breaking. This disc harrow operates smoothly with 40–50 HP tractors. The offset disc harrow design improves penetration and soil pulverization. Notched front discs handle crop residue effectively, while rear plain discs provide leveling. It is ideal for dry land farming and post-harvest field preparation. This model suits farmers who want higher productivity with balanced tractor power.

Working Width / Capacity: Approx. 1635 mm
Power Requirement / Tractor HP: 40–50 HP
Transmission / Drive Type: Tractor mounted, ground driven
Number of Discs: 14 discs
Disc Diameter: 560 mm / 610 mm
Disc Spacing: 228 mm
Gang Bolt / Axle: 32 mm solid square rod
Bearing Hubs: 4
Approximate Weight: 430 kg

Heavy-duty steel frame
Upper frame offset configuration
Long-lasting disc blades
Designed for consistent depth operation
Strong build for rough field conditions

40–50 HP

Standard tractor three-point linkage compatibility
Optional disc size selection
Heavy-duty bearing assemblies

The Farmking FKDHUF-14D Mounted Disc Harrow includes manufacturer warranty support. The warranty covers manufacturing defects in materials and components. It assures dependable field performance and durability. Exact warranty terms depend on the authorized dealer.
