High-capacity mounted disc harrow
Offset disc layout for deep penetration
Notched front discs for residue and weeds
Plain rear discs for leveling
Extra-strong frame construction
Designed for large-scale farming

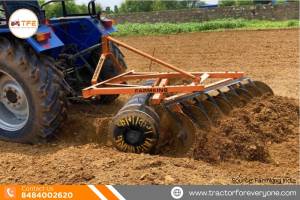

The Farmking FKDHUF-18D Mounted Disc Harrow is the largest model in the FKDHUF series. It is designed for large farms and high-capacity field operations. This model requires 60–70 HP tractors for optimal performance. Its wide working width allows faster soil preparation. The offset disc system improves penetration and soil mixing. Notched front discs cut heavy residue, while plain rear discs ensure leveling. It is best suited for farmers who need maximum productivity and strength.

Working Width / Capacity: Approx. 2068 mm
Power Requirement / Tractor HP: 60–70 HP
Transmission / Drive Type: Tractor mounted, ground driven
Number of Discs: 18 discs
Disc Diameter: 560 mm / 610 mm
Disc Spacing: 228 mm
Gang Bolt / Axle: 32 mm solid square rod
Bearing Hubs: 8
Approximate Weight: 575 kg

Heavy-duty steel frame and structure
Upper frame offset design
High load-bearing disc gangs
Built for continuous heavy field use
Stable and balanced operation

Compatible with high-HP tractors
Optional disc size configuration
Heavy-duty bearing and hub system

The Farmking FKDHUF-18D Mounted Disc Harrow comes with a standard manufacturer warranty. It covers manufacturing defects under normal operating conditions. The warranty ensures durability and peace of mind for large-scale farmers. Warranty conditions may vary by dealer location.
