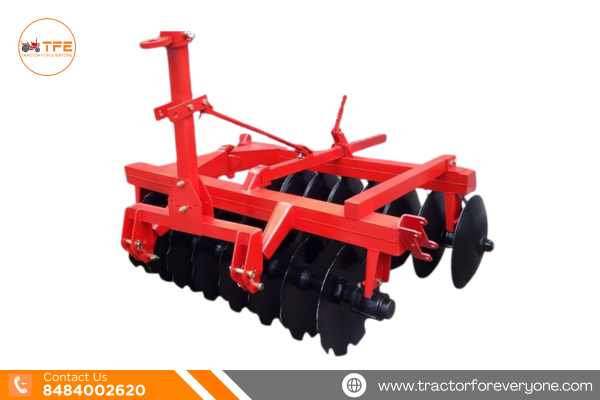

Vasundhara Hydraulic Disc Harrow

The Vasundhara Hydraulic Disc Harrow, priced approximately up to ₹70,000, is a heavy-duty soil preparation implement engineered for efficient seedbed preparation, residue management, clod breaking, and soil levelling across dry land and semi-wet conditions. Manufactured by Vasundhara Agro Implements, this hydraulic disc harrow delivers deep tillage, uniform soil cutting, and long-lasting performance — making it an ideal choice for medium to large farms that require robust disc-based tillage.

Whether you're preparing open farmland for sowing, breaking post-harvest stubble, mixing organic matter into the soil, or levelling the field after ploughing, the Vasundhara 16 Disc Hydraulic Harrow offers a dependable blend of strength, penetration, and operational smoothness. The hydraulically controlled frame makes adjustment effortless, while the durable boron steel discs ensure consistent cutting and longer working life even in tough soils.

Vasundhara Hydraulic Disc Harrow
Vasundhara Hydraulic Disc Harrow

Key Features

Durable mild steel construction
14 discs with 575 mm diameter
Trailed disc harrow design
Hydraulic depth adjustment for ease of operation
Compatible with 37 HP tractors
Efficient for breaking clods and leveling soil
Suitable for wet and dry land
Reduces labor and tractor fuel consumption

Model Overview

The Hydraulic Disc Harrow by Vasundhara Krishi Yantra is a robust agricultural implement designed for effective soil preparation and tillage. Built with high-quality mild steel, it ensures long-term durability and reliable performance across different farming conditions. This model features 14 discs with a diameter of 575 mm, making it ideal for breaking clods, leveling fields, and preparing seedbeds. Compatible with 37 HP tractors, the harrow uses hydraulic adjustment for efficient depth control and easy operation. Its total weight of 350 kg provides stability while working on tough soils. Farmers benefit from faster field preparation, improved soil aeration, and reduced manual labor. The trailed design ensures smooth towing and uniform soil cutting, making it suitable for medium to large farms.

Specification

Number of Disc / Working Width: 14 discs, 575 mm diameter each
Power Requirement / Tractor HP: 37 HP tractor
Material / Build: Mild steel
Type: Trailed Disc Harrow
Total Weight: 350 kg
Depth / Speed / Adjustable Settings: Adjustable working depth via hydraulic system
Usage / Application: Agriculture, soil preparation, tillage

Other Specification

Rust-resistant mild steel frame for long-lasting use
Hydraulic system for precise depth control
Operator-friendly design for easy mounting and towing
Suitable for all types of soil conditions
Ensures uniform soil cutting and leveling
Reduces tractor load and improves efficiency

Engine

Power Requirement / Tractor HP: 37 HP tractor

Accessories

Hydraulic hoses and control for depth adjustment
Tractor mounting brackets compatible with 37 HP tractors
Optional replacement discs
Adjustable scrapers for soil cleaning

Warranty

Vasundhara Krishi Yantra offers a 1-year manufacturer warranty covering material and manufacturing defects. This ensures reliable performance, durability, and peace of mind for farmers. Guidance for maintenance and part replacement is provided for optimal operation.

Similar Farm Equipments

Reviews

Vasundhara Hydraulic Disc Harrow User Reviews

5 / 5
Based on 1 User Reviews
  • Price
    5
  • Design
    5
  • Performance
    5
  • Maintenance
    5
  • star
  • star
  • star
  • star
  • star

मजबूत बिल्ड कोलिटी आहे.

Rajesh

Write a Review

Vasundhara Hydraulic Disc Harrow

Rate Below Performance Parameter

Price
Performance
Design
Maintenance

Pros and cons of Vasundhara Hydraulic Disc Harrow

✔ Pros

  • 16 high-quality boron steel discs – delivers deep and uniform soil cutting with long-lasting wear resistance.
  • Hydraulic lifting system – allows easy transport, turning, and depth adjustment without manual effort.
  • Sturdy heavy-duty frame – withstands harsh working conditions on black, clay, or medium-hard soils.
  • Excellent residue management – cuts and buries crop remains effectively, improving soil health.
  • Suitable for seedbed preparation and clod breaking – ideal for pre-sowing operations across different crops.
  • Adjustable disc gang angles – enables better soil penetration and control based on land conditions.
  • Compatible with multiple tractor HP ranges – performs well with popular mid-range tractors.
  • Low maintenance requirement – strong bushings, reliable bearings, and tough discs reduce upkeep.
  • Improves soil aeration & moisture retention – enhancing crop germination and growth.
  • Cost-effective implement – offers strong value for farmers seeking durable disc tillage at an affordable price.

✘ Cons

  • Not suitable for extremely rocky terrain – rocks may damage discs or bearings.
  • Requires regular greasing of bearings and hubs – skipping maintenance may reduce long-term efficiency.
  • Heavy implement – smaller tractors may struggle if HP is below recommended range.
  • Not suitable for puddling or wetland paddy operations – designed mainly for dry or semi-wet fields.
  • Hydraulic hoses and cylinders need periodic checks to avoid leaks or pressure loss.

About Vasundhara Hydraulic Disc Harrow

The Vasundhara 16 Disc Hydraulic Harrow is engineered for versatile tillage performance suited to Indian farming conditions. With its robust design, durable components, and hydraulic operational convenience, it enables farmers to achieve deeper soil penetration, efficient stubble mixing, and fast seedbed preparation.

Key Features

  • 16 heavy-duty boron steel discs – ensure better soil cutting and longer lifespan.

  • Hydraulic lift system – easy raising and lowering during turns and transport.

  • Strong mainframe with angle-adjustable gangs – optimized for varied soil types.

  • High-quality bearings & hubs – withstand long working hours and heavy load.

  • Easy-to-operate hydraulic mechanism – improves efficiency and reduces fatigue.

  • Suitable for residue mixing & clod crushing – improves soil tilth for better crop establishment.

  • Uniform disc spacing – maintains consistent soil cutting and mixing action.

  • Corrosion-resistant paint & finish – enhances durability in field conditions.


Model Summary

The 16-disc variant is designed for farmers seeking deeper soil working capacity than 12- or 14-disc models while maintaining better manoeuvrability than larger (18–20 disc) units. It suits operations such as primary tillage, post-harvest soil conditioning, and leveling across mid-sized farming areas.

With its hydraulic lift system and durable construction, the implement handles tough field conditions while ensuring smooth operation and long service life.

Detailed Specifications of Vasundhara Hydraulic Disc Harrow – 16 Disc

Parameter

Specification

Number of Discs

16 boron steel discs

Disc Diameter

560 mm – 610 mm (22–24 inches)

Disc Type

Notched or plain (depending on availability)

Disc Spacing

228 mm – 254 mm

Suitable Tractor HP

35 – 55 HP

Frame Type

Heavy-duty welded mainframe

Harrow Type

Hydraulic lifted disc harrow

Gang Arrangement

Front & rear gangs with adjustable angles

Bearing Type

High-load-duty agricultural bearings

Axle Type

Strong EN-grade steel axles

Weight

350 – 450 kg (varies by variant)

Working Width

Approx. 1.6 – 1.8 meters

Hydraulic System

Tractor-operated dual-arm lifting

Category of Hitch

CAT-II 3-point linkage

Applications

Clod breaking, seedbed preparation, residue incorporation, soil mixing

These specifications make the Vasundhara 16 Disc Harrow suitable for various soil conditions, offering consistent depth and uniformity during tillage.

Vasundhara Hydraulic Disc Harrow Price in India

The Vasundhara Hydraulic Disc Harrow is available in India at a price of up to ₹70,000, depending on:

  • dealer location

  • disc diameter and type

  • frame weight and material

  • hydraulic fittings

  • taxes and transport charges


Given its performance, strength, and hydraulic convenience, it offers a strong value proposition for farmers looking to mechanize tillage operations efficiently.

Why Choose Tractor For Everyone for the Vasundhara 16 Disc Hydraulic Harrow?

At Tractor For Everyone, we help farmers explore farm implements with complete confidence. Our dedicated product listings offer:

  • detailed specifications

  • transparent pricing

  • verified dealer connections

  • easy comparison tools

  • expert guidance

  • HP and price filters

  • trusted and genuine equipment information


This ensures you choose the ideal disc harrow that perfectly matches your tractor, land size, soil type, and budget — without confusion or misinformation.

If you’re planning to buy the Vasundhara Hydraulic Disc Harrow  at the best price with reliable information support, Tractor For Everyone is your trusted platform.

Popular Vasundhara Disc Harrow Models

Model Name

Key Features

Best Use

Vasundhara 12 Disc Harrow

Lightweight, smaller working width

Small farms, light soils

Vasundhara 14 Disc Harrow

Balanced cutting & moderate penetration

Medium farms, general tillage

Vasundhara 16 Disc Hydraulic Harrow

Hydraulic lift, deeper penetration, 16 discs

Medium to large farms, tough soils

Vasundhara 18 Disc Harrow

Wider cutting width, heavier frame

Large fields, heavy soils

Vasundhara 20 Disc Harrow

Higher residue mixing capacity

Contract farming, stubble management

Note: Features may vary depending on dealer and region.

Benefits – What Makes Vasundhara Hydraulic Disc Harrow Stand Out

  1. Deep Penetration & Efficient Soil Cutting

The heavy-duty boron steel discs provide deeper soil penetration, improved clod breaking, and effective turning of the soil — essential for creating an ideal seedbed.

  1. Hydraulic Convenience

The hydraulic system enables easy lifting of the harrow during turning, transport, or clearing obstacles, reducing operator effort and ensuring smooth workflow.

  1. Superior Residue Incorporation

The sharp notched/plain discs effectively cut crop residue and mix it into the soil, improving soil health and reducing the need for burning.

  1. Strong Frame & Long Working Life

Designed for Indian field conditions, the robust mainframe ensures durability and resistance to bending or stress during heavy tillage.

  1. Multi-Crop Versatility

Ideal for preparing fields for wheat, maize, cotton, soyabean, sugarcane, vegetables, pulses, and more.

Use Cases – Who Should Use the Vasundhara 16 Disc Hydraulic Harrow

This implement is best suited for:

  • Farmers with medium to large fields

  • Farms with black soil, clay soil, or mixed soils

  • Farmers needing efficient clod breaking and seedbed preparation

  • Those practicing crop rotation or multi-crop farming

  • Agricultural contractors providing tillage services


Operating Considerations & Best Practices

  • Ensure tractor HP is between 35–55 HP for best performance.

  • Grease disc bearings regularly to avoid wear.

  • Adjust gang angles based on required soil penetration.

  • Avoid using in extremely rocky soils.

  • Inspect hydraulic hoses and cylinders periodically.

  • Store under shade to prevent rust.


Conclusion: Overall Value & Recommendation

The Vasundhara Hydraulic Disc Harrow  is a rugged, efficient, and farmer-friendly tillage implement ideal for deep soil cutting and preparing a fine seedbed across a variety of soil conditions. With its hydraulic lift system, strong frame, high-quality discs, and affordable price (up to ₹70,000), it delivers excellent long-term value for farmers seeking reliable disc-based tillage performance.

If your farm requires a robust disc harrow that offers deep working, residue mixing, and ease of operation, the Vasundhara 16 Disc Hydraulic Harrow is a highly recommended choice.

Frequently Asked Questions

  • What maintenance does it require?

    Regular lubrication of bearings, checking disc condition, tightening bolts, and inspecting hydraulic components ensure long service life.

  • Is it suitable for paddy fields?

  • How much does the implement weigh?

  • Can the disc angles be adjusted?

  • Is it suitable for black or clay soil?

  • Does it come with a hydraulic lifting system?

  • Can this harrow be used for seedbed preparation?

  • What is the disc size used in this model?

  • What tractor HP is required for this harrow?
